Run a Verifier

Any application that wants to authenticate users based on their Privado ID Identity off-chain must set up a Verifier. A Verifier is made of a Server and a Client.

The Server generates the ZK Request according to the requirements of the platform. There are two types of authentication:

  • Basic Auth: for example, a platform that issues Credentials must authenticate users by their identifiers before sharing Credentials with them.
  • Query-based Auth: for example, a platform that gives access only to those users that are over 18 years of age.

The second role of the Server is to execute Verification of the proof sent by the Identity Wallet.

The Verifier Client is the point of interaction with the user. In its simplest form, a client needs to embed a QR code that displays the ZK request generated by the Server. The verification request can also be delivered to users via Deep Linking. After scanning the ZK request, the user will generate a proof based on that request locally on their wallet. This proof is therefore sent back to the Verifier Server that verifies whether the proof is valid.

This tutorial is based on the verification of a Credential of Type KYCAgeCredential with an attribute birthday based on the following Schema URL: https://raw.githubusercontent.com/iden3/claim-schema-vocab/main/schemas/json-ld/kyc-v3.json-ld.

The prerequisite is that users have the Privado ID Wallet app installed and self-issued a Credential of type KYC Age Credential Merklized using PrivadoID Demo Issuer. Further credentials can be issued using the Issuer Node.

In this example, the verifier will set up the query: "Prove that you were born before 2000/01/01. To set up a different query check out the ZK Query Language section.

note

The executable code for this section can be found here.

Verifier Server Setup​

  1. Add the authorization package to your project
go get github.com/iden3/go-iden3-auth/v2
  1. Set up a server

Initiate a server that contains two endpoints:

  • GET /api/sign-in: Returns auth request.
  • POST /api/callback: Receives the callback request from the identity wallet containing the proof and verifies it.
package main

import(
    "encoding/json"
    "fmt"
    "io"
    "log"
    "net/http"
    "os"
    "strconv"
    "time"
    "github.com/ethereum/go-ethereum/common"
    circuits "github.com/iden3/go-circuits/v2"
    auth "github.com/iden3/go-iden3-auth/v2"
    "github.com/iden3/go-iden3-auth/v2/pubsignals"
    "github.com/iden3/go-iden3-auth/v2/state"
    "github.com/iden3/iden3comm/v2/protocol"
)

const VerificationKeyPath = "verification_key.json"

type KeyLoader struct {
    Dir string
}

// Load keys from embedded FS
func (m KeyLoader) Load(id circuits.CircuitID) ([]byte, error) {
    return os.ReadFile(fmt.Sprintf("%s/%v/%s", m.Dir, id, VerificationKeyPath))
}

func main() {
    http.HandleFunc("/api/sign-in", GetAuthRequest)
    http.HandleFunc("/api/callback", Callback)
    log.Println("Starting server at port 8080")
    if err := http.ListenAndServe(":8080", nil); err != nil {
        log.Fatal(err)
    }
}

// Create a map to store the auth requests and their session IDs
var requestMap = make(map[string]interface{})
  1. Sign-in endpoint

This endpoint generates the auth request for the user. Using this endpoint, the developers set up the requirements that users must meet in order to authenticate.

If created using Privado ID Platform, the schema URL can be fetched from there and pasted inside your Query.


func GetAuthRequest(w http.ResponseWriter, r *http.Request) {

// Audience is verifier id
rURL := "NGROK URL"
sessionID := 1
CallbackURL := "/api/callback"
Audience := "did:iden3:uptick:origin:2qQ68JkRcf3xrHPQPWZei3YeVzHPP58wYNxx2mEouR"

uri := fmt.Sprintf("%s%s?sessionId=%s", rURL, CallbackURL, strconv.Itoa(sessionID))

// Generate request for basic authentication
var request protocol.AuthorizationRequestMessage = auth.CreateAuthorizationRequest("test flow", Audience, uri)

request.ID = "7f38a193-0918-4a48-9fac-36adfdb8b542"
request.ThreadID = "7f38a193-0918-4a48-9fac-36adfdb8b542"

// Add request for a specific proof
var mtpProofRequest protocol.ZeroKnowledgeProofRequest
mtpProofRequest.ID = 1
mtpProofRequest.CircuitID = string(circuits.AtomicQuerySigV2CircuitID)
mtpProofRequest.Query = map[string]interface{}{
    "allowedIssuers": []string{"*"},
    "credentialSubject": map[string]interface{}{
        "birthday": map[string]interface{}{
            "$lt": 20000101,
        },
    },
    "context": "https://raw.githubusercontent.com/iden3/claim-schema-vocab/main/schemas/json-ld/kyc-v3.json-ld",
    "type":    "KYCAgeCredential",
}
request.Body.Scope = append(request.Body.Scope, mtpProofRequest)

// Store auth request in map associated with session ID
requestMap[strconv.Itoa(sessionID)] = request

// print request
fmt.Println(request)

msgBytes, _ := json.Marshal(request)

    w.Header().Set("Content-Type", "application/json")
    w.WriteHeader(http.StatusOK)
    w.Write(msgBytes)
    return
}
"Allowed Issuers"

When we use * in the "allowed issuers" segment (allowedIssuers: ['*']), we mean that we accept any entity that might have provided the credential. Even though this seems to be convenient for testing purposes, it may also be considered risky. Applying due diligence by actually choosing trusted specific issuers should be the best approach. Only in rare cases, a verifier would accept any issuer, so we advise not to use *.

note

The highlighted lines are to be added only if the authentication needs to design a query for a specific proof as in the case of Query-based Auth. When not included, it will perform a Basic Auth.

  1. Callback Endpoint

The request generated in the previous endpoint already contains the CallBackURL so that the response generated by the wallet will be automatically forwarded to the server callback function. The callback post endpoint receives the proof generated by the identity wallet. The role of the callback endpoint is to execute the Verification on the proof.

"Testnet / Mainnet"

The code samples on this page are using Polygon's Origin testnet, including the smart contract address and the RPC endpoint in the ethURL variable. If you want to use the Mainnet, you need to add a resolver for it.

Mainnet contract address: 0x624ce98D2d27b20b8f8d521723Df8fC4db71D79D

DID prefix: uptick:main

const RPC_URL = '<RPC_URL>';
const mainContractAddress = "0x624ce98D2d27b20b8f8d521723Df8fC4db71D79D"

const mainStateResolver = new resolver.EthStateResolver(
    RPC_URL,
    mainContractAddress,
);

const resolvers = {
    ['polygon:mumbai']: ethStateResolver,
    ['uptick:Origin']: OriginStateResolver,
    ['uptick:main']: mainStateResolver,
};

A Verifier can work with multiple networks simultaneously. Even users and issuers can be on different networks. The verifier library can properly resolve the state of the issuer and the user from the different networks.

note

The public verification keys for Iden3 circuits generated after the trusted setup can be found here and must be added to your project inside a folder called keys.

// Callback works with sign-in callbacks
func Callback(w http.ResponseWriter, r *http.Request) {
    fmt.Println("callback")
    // Get session ID from request
    sessionID := r.URL.Query().Get("sessionId")

    // get JWZ token params from the post request
    tokenBytes, err := io.ReadAll(r.Body)
    if err != nil {
        log.Println(err)
        return
    }
    // Add Uptick Origin RPC node endpoint - needed to read on-chain state
    ethURL := "https://polygon-Origin.infura.io/v3/<API-KEY>"

    // Add IPFS url - needed to load schemas from IPFS
    ipfsURL := "https://ipfs.io"

    // Add identity state contract address
    contractAddress := "0x1a4cC30f2aA0377b0c3bc9848766D90cb4404124"

    resolverPrefix := "polygon:Origin"

    // Locate the directory that contains circuit's verification keys
    keyDIR := "../keys"

    // fetch authRequest from sessionID
    authRequest := requestMap[sessionID]

    // print authRequest
    log.Println(authRequest)

    // load the verifcation key
    var verificationKeyLoader = &KeyLoader{Dir: keyDIR}
    resolver := state.ETHResolver{
        RPCUrl:          ethURL,
        ContractAddress: common.HexToAddress(contractAddress),
    }

    resolvers := map[string]pubsignals.StateResolver{
        resolverPrefix: resolver,
    }

    // EXECUTE VERIFICATION
    verifier, err := auth.NewVerifier(verificationKeyLoader, resolvers, auth.WithIPFSGateway(ipfsURL))
    if err != nil {
        log.Println(err.Error())
        http.Error(w, err.Error(), http.StatusInternalServerError)
        return
    }
    authResponse, err := verifier.FullVerify(
        r.Context(),
        string(tokenBytes),
        authRequest.(protocol.AuthorizationRequestMessage),
        pubsignals.WithAcceptedStateTransitionDelay(time.Minute*5))
    if err != nil {
        log.Println(err.Error())
        http.Error(w, err.Error(), http.StatusInternalServerError)
        return
    }

    //marshal auth resp
    messageBytes, err := json.Marshal(authResponse)
    if err != nil {
        log.Println(err.Error())
        http.Error(w, err.Error(), http.StatusInternalServerError)
        return
    }

    w.WriteHeader(http.StatusOK)
    w.Header().Set("Content-Type", "application/json")
    w.Write(messageBytes)
    log.Println("verification passed")
}

If you need to deploy an App or to build a Docker container, you'll need to bundle the libwasmer.so library together with the app.

Verifier Client Setup​

The Verifier Client must fetch the Auth Request generated by the Server (/api/sign-in endpoint) and deliver it to the user via a QR Code.

To display the QR code inside your frontend, you can use this Code Sandbox.

A Verifier can show a QR code that contains one of the following data structures:

  • Raw JSON - message will be treated as one of the IDEN3 Protocol messages.
  • Link with base64 encoded message or shortened request URI (encoded URL) in case base64-encoded message is too large. Possible formats of links are:
    1. iden3comm://?i_m={{base64EncodedRequestHere}}
    2. iden3comm://?request_uri={{shortenedUrl}}

If both params are present i_m is prioritized and request_uri is ignored.

The same request can also be delivered to users via Deep Linking. The same format for links must be used.

Shortened URL algorithm

While it's not strictly restricted how you can perform URL shortage algorithm, it is recommended to follow these instructions:

  1. Generate a UUID for a particular request (or use ID of the message itself)
  2. Implement an endpoint to fetch messages by UUID.
  3. Encode URL to fetch messages to the request_uri.

Example of URL shortage logic:

package handlers

import (
    "encoding/json"
    "fmt"
    "io"
    "net/http"
    "os"
    "time"
    "github.com/gofrs/uuid"
    "github.com/patrickmn/go-cache"
)

var cacheStorage = cache.New(60*time.Minute, 60*time.Minute)

func HandleQRData(w http.ResponseWriter, r *http.Request) {
    switch r.Method {

    // create url for the message
    case http.MethodPost:

        // get json data from request body
        var data interface{}
        body, err := io.ReadAll(r.Body)
        if err != nil {
            http.Error(w, "Failed to read request body", http.StatusInternalServerError)
            return
        }
        defer r.Body.Close()

        err = json.Unmarshal(body, &data)
        if err != nil {
            http.Error(w, "Failed to unmarshal body data", http.StatusInternalServerError)
            return
        }

        // generate random key
        uv, err := uuid.NewV4()

        if err != nil {
            http.Error(w, "Failed to generate uuid", http.StatusInternalServerError)
            return
        }

        // store data in map
        cacheStorage.Set(uv.String(), data, 1*time.Hour)

        hostURL := os.Getenv("HOST_URL") // e.g. https://verifier.com
        // write key to response
        fmt.Fprintf(w, "%s%s?id=%s", hostURL, "api/qr-store", uv.String())
        return

    // get message by identifier
    case http.MethodGet:

        // get path param
        id := r.URL.Query().Get("id")
        if id == "" {
            http.Error(w, "Failed to get id", http.StatusNotFound)
            return
        }
        // get data from map
        data, ok := cacheStorage.Get(id)

        if !ok {
            http.Error(w, fmt.Sprintf("Failed to retrieve QR data by %s", id), http.StatusNotFound)
            return
        }

        jsonData, err := json.Marshal(data)
        if err != nil {
            http.Error(w, "Failed to encode JSON", http.StatusInternalServerError)
            return
        }

        // write data to response
        w.WriteHeader(http.StatusOK)
        w.Header().Set("Content-Type", "application/json")
        w.Write(jsonData)
        return
    }
}

Implement Further Logic

This tutorial showcased a minimalistic application that leverages Privado ID libraries for authentication purposes. Developers can leverage the broad set of existing Credentials held by users to set up any customized Query using PrivadoID ZK Query Language to unleash the full potential of the framework.

For example, the concept can be extended to exchanges that require KYC Credentials, DAOs that require proof-of-personhood Credentials, or social media applications that intend to re-use users' aggregated reputation.

To do so, add the Static Folder to your Verifier repository. This folder contains an HTML static webpage that renders a static webpage with the QR code containing the Auth Request.

To display the QR code inside your frontend, you can use the express.static built-in middleware function together with this Static Folder or this Code Sandbox.

  1. Add routing to your Express Server

To serve static files, we use the express.static built-in middleware function.

const express = require("express");
const { auth, resolver, protocol } = require("@iden3/js-iden3-auth");
const getRawBody = require("raw-body");

const app = express();
const port = 8080;

app.use(express.static("static"));

app.get("/api/sign-in", (req, res) => {
  console.log("get Auth Request");
  GetAuthRequest(req, res);
});

app.post("/api/callback", (req, res) => {
  console.log("callback");
  Callback(req, res);
});

app.listen(port, () => {
  console.log("server running on port 8080");
});

// Create a map to store the auth requests and their session IDs
const requestMap = new Map();

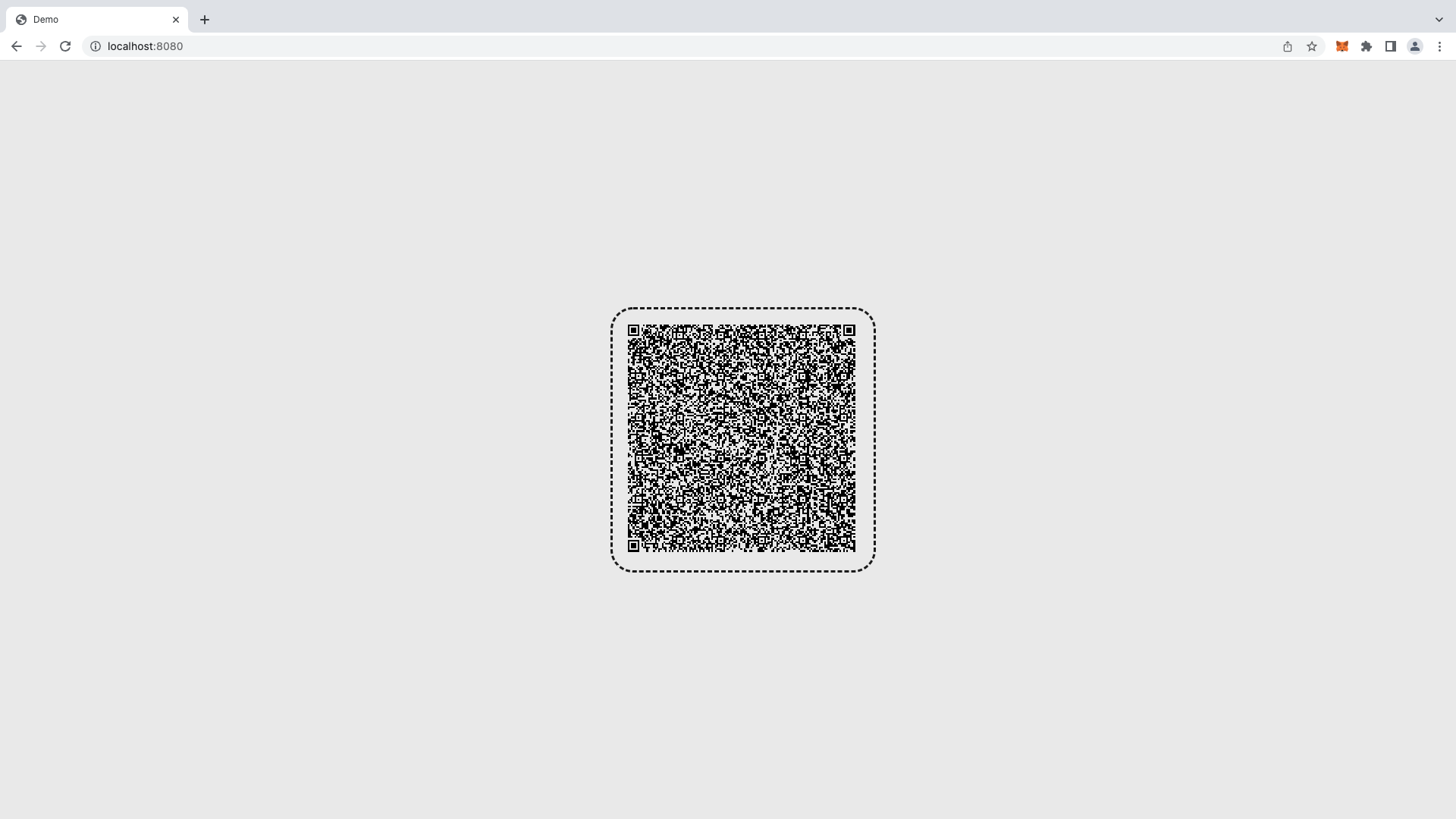

  1. Visit http://localhost:8080/

When visiting the URL, the users will need to scan the QR code with their ID wallets.
